ALEV KAMAN
OMG-001

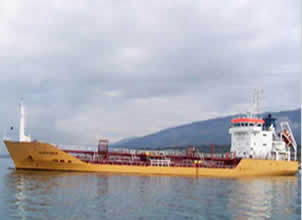

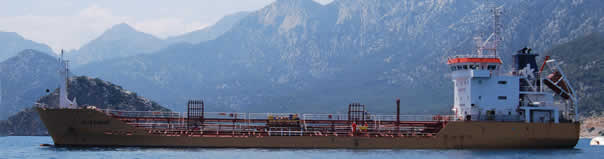

Single decked, single screw motor ship with double bottom and double skin with coated cargo tanks. The ship is designed for unrestricted navigation and service, being capable to carry a large range of liquid IMO II type cargoes (acc. to IBC Code), vegetable oils, oil products and withstands cargoes with specific gravity up to 1.54 t/m³ at 66°C. The hull form is designed for minimum resistance and overall design provides an environment-friendly, cost-effective, reliable and flexible unit. The ship, provided with cargo pump room installation, has three segregations.


Services

TECHNICAL CONSULTANCY

  • Shipyard selection
  • Project planning & Scheduling
  • Equipment & Material determination
  • Procurement consultancy
  • Production control engineering
  • Ship take-over process management

Ship Information

OWNER

SHIPYARD

HULL NO

DESIGNER

CLASSIFICATION

CLASS ID

CLASS NOTATION



IMO NO

Kaman Denizcilik Petrol Ürünleri Tic. A.Ş. / Türkiye

Sedef Gemi İnşaat San. A.Ş. / Türkiye

129

Delta Marine

Bureau Veritas

03194Y

BV I 3/3 E, HULL MACHINERY OIL PRODUCT TANKER, ESP, UNRESTRICTED NAVIGATION AUT-UMS

9268289


Main Dimensions

Length (BP)

Perpendiculars

Breadth (Moulded)

Depth (Moulded)

Draught (Design)

Draught(Scantling)

92,86 m

86,65 m

14,10 m

7,20 m

5,50 m

5,70 m

Tonnage & Capacities

DWT

Cargo Capacity

Crew

3667 ton

4185 m³

16

Speed & Propulsion Sys.

Des. Speed

Main Engine

Propulsion System

13 knots,85% MCR

MAK 6m25, 1 x 1850 kW, 750 rpm

BERG, 1 x Controllable Pitch Propeller, 4 blades, 3500 mm, 151.4 rpm
