Omega Marine

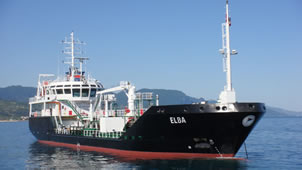

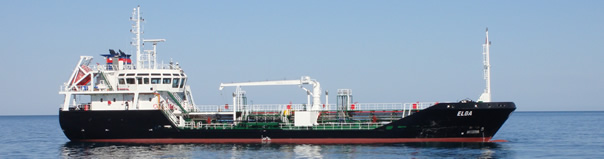

ELBA
OMG-007

The ice-classed and single decked ship is equipped with two propulsion units consisting of two four stroke engines and two fixed pitch propellers. The ship is designed for unrestricted navigation and service, being capable to carry a large range of liquid IMO II type cargoes (acc. to IBC Code), vegetable oils, oil products and withstands cargoes with specific gravity up to 1.54 t/m³ at 66°C. The hull structure is strengthened with double bottom and double skin. No structural element faces the coated cargo tanks. The hull form is designed for minimum resistance and overall design provides an environment-friendly, cost-effective, reliable and flexible unit. One electric-driven deepwell pump is installed for each tank while five segregations are provided with one vapour return line. Machinery systems, cargo systems with expedition and control systems are all managed in centrally in the wheelhouse.


Services

TURNKEY NEW BUILDING

  • Project management (scope, time, cost, resource, communication, risk, procurement, quality management)
  • Project finance
  • Determination & Coordination of all project's actors (shipyard, classification society, designer, manufacturers, flag authority)
  • Contract & Detail design
  • Determination & Procurement of all material & Equipment
  • Ensuring subcontractorsand/or workers
  • Factory, harbour and sea acceptance tests management
  • Ship registry operations
  • Ship delivery

Ship Information

OWNER

SHIPYARD

HULL NO

DESIGNER

CLASSIFICATION

CLASS ID

CLASS NOTATION



IMO NO

D'Alesio Grup / İtalya

Cide Gemi Yat San. A.Ş. / Türkiye

04

Delta Marine

Bureau Veritas

11831M

BV, I HULL, MACHINERY, OIL TANKER, CHEMICAL TANKER, IMO II, ESP, UNRESTRICTED NAVIGATION, ICE CLASS 1C AUT-UMS, AVM-DPS, VCS, IG, CLEAN SHIP, INWATER SURVEY, MANOVR

9487744


Main Dimensions

Length (OA)

Length (BP)

Breadth (Moulded)

Depth (Moulded)

Draught (Design)

Draught(Scantling)

72,62 m

66,67 m

13,00 m

6,40 m

4,80 m

5,20 m

Tonnage & Capacities

DWT

Cargo Capacity

Crew

2512 ton

2634 m³

11

Speed & Propulsion Sys.

Des. Speed

Main Engine

Propulsion System

12 knots, 90% MCR

GUASCOR, SF240TAi-SP, 2 x 577 kW / 785 HP, 1800 rpm

SCHAFFRAN, 1 x Fixed Pitch Propeller, 4 blades, 2100 mm, 255 rpm
