FIONIA SWAN
OMG-002

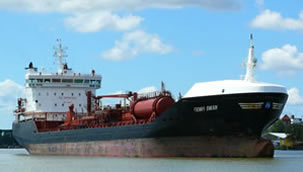

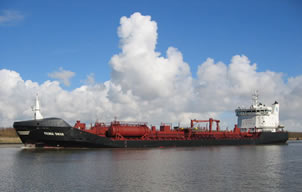

The ice-classed and single decked ship is equipped with innovative azimuth propulsion system with two units. The ship is designed for unrestricted navigation and service, being capable to carry a large range of liquid IMO II type cargoes (acc. to IBC Code), vegetable oils, oil products and withstands cargoes with specific gravity up to 1.90 t/m3. The hull structure is strengthened with double bottom and double skin. No structural element faces the coated cargo tanks. The hull form is designed for minimum resistance and overall design provides an environment-friendly, cost-effective, reliable and flexible unit. One deep-well pump is installed for each tank while complete segregation for each cargo tank is provided with one vapour return line.


Services

TECHNICAL CONSULTANCY

  • Feasibility analysis
  • Shipyard selection
  • Project planning & Scheduling
  • Equipment & Material determination
  • Procurement consultancy
  • Production control engineering
  • Ship take-over process management


CONTRACTING BUSINESS

  • Outfitting units production & Assembly
  • Machiney systems assembly
  • Piping systems production & Assembly

Ship Information

OWNER

SHIPYARD

HULL NO

DESIGNER

CLASSIFICATION

CLASS ID

CLASS NOTATION



IMO NO

UNI-TANKERS A/S / Danimarka

Deniz Endüstrisi A.Ş (Çiçek Tersanesi) / Türkiye

34

Delta Marine

Bureau Veritas

04167G

BV I HULL MACHINERY, CHEMICAL TANKER, OIL TANKER, ESP, UNRESTRICTED NAVIGATION, SYS NEQ 1 AUT-UMS, ICE CLASS IA, CLEAN SEA, AVM - DPS, IG, VCS, INWATERSURVEY, MANOVR

9328974


Main Dimensions

Length (OA)

Length (BP)

Breadth (Moulded)

Depth (Moulded)

Draught (Design)

Draught(Scantling)

148,00 m

139,50 m

21,60 m

11,30 m

8,50 m

8,60 m

Tonnage & Capacities

DWT

Cargo Capacity

Crew

15602 ton

18310 m³

20

Speed & Propulsion Sys.

Des. Speed

Main Engine

Propulsion System

15 knots, 90% MCR, 10% deniz marjini

BERGEN, B32:40L8P, 2 x 3600 kW, 720 rpm

ROLLS ROYCE, Aquamaster CP Azimuth Thruster, 2 x 3240 kW, 3400 mm, 182.3 rpm, NiAlBr
