Omega Marine
 GAZPROMNEFT NORD WEST
OMG-008

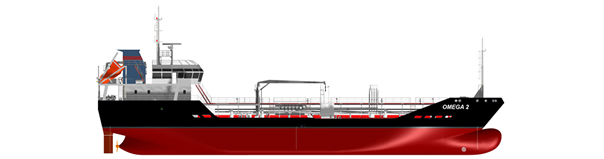

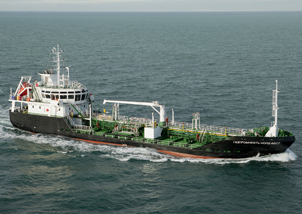

The ice-classed and single decked ship is equipped with two propulsion units consisting of two four stroke engines and two fixed pitch propellers. The ship is designed for unrestricted navigation and service, being capable to carry a large range of liquid IMO II type cargoes (acc. to IBC Code), vegetable oils, oil products and withstands cargoes with specific gravity up to 1.54 t/m³ at 66°C. The hull structure is strengthened with double bottom and double skin. No structural element faces the coated cargo tanks. The hull form is designed for minimum resistance and overall design provides an environment-friendly, cost-effective, reliable and flexible unit. One electric-driven deepwell pump is installed for each tank while five segregations are provided with one vapour return line. Machinery systems are controlled from the engine control room while cargo systems and expedition & control systems are all managed in centrally in the wheelhouse.


Services

TURNKEY NEW BUILDING

  • Project management (scope, time, cost, resource, communication, risk, procurement, quality management)
  • Project finance
  • Determination & Coordination of all project's actors (shipyard, classification society, designer, manufacturers, flag authority)
  • Contract & Detail design
  • Determination & Procurement of all material & Equipment
  • Ensuring subcontractorsand/or workers
  • Factory, harbour and sea acceptance tests management
  • Ship registry operations
  • Ship delivery

Ship Information

OWNER

SHIPYARD

HULL NO

DESIGNER

CLASSIFICATION

CLASS ID

CLASS NOTATION



IMO NO

Omega Denizcilik Mühendislik ve Enerji A.Ş. / Türkiye

Gisan Gemi İnşa San. ve Tic. A.Ş. / Türkiye

51

Delta Marine

Bureau Veritas

18904A

BV, I HULL, MACHINERY, OIL TANKER, CHEMICAL TANKER, IMO II, ESP, UNRESTRICTED NAVIGATION, ICE CLASS 1C AUT-UMS, AVM-DPS, VCS, IG, CLEAN SHIP, INWATER SURVEY, MANOVR

9590137


Main Dimensions

Length (OA)

Length (BP)

Breadth (Moulded)

Depth (Moulded)

Draught (Design)

Draught(Scantling)

72,62 m

66,67 m

13,00 m

6,40 m

4,80 m

5,20 m

Tonnage & Capacities

DWT

Cargo Capacity

Crew

2600 ton

2634 m³

11

Speed & Propulsion Sys.

Des. Speed

Main Engine

Propulsion System

12 knots, 90% MCR

YANMAR, 6N21A-UV, 2 x 736 kW, 800 rpm

CEDERVALL, 1 x Fixed Pitch Propeller, 4 blades, mm, rpm
