H. İSMAİL KAPTANOğLU
OMG-003

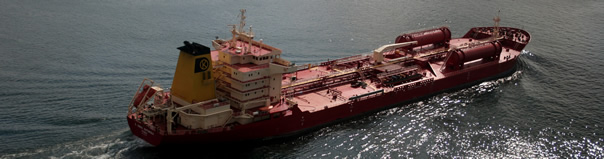

The single decked ship is equipped with single propulsion system ship and strengthened with double bottom and double skin. The ship is designed for unrestricted navigation and service, being capable to carry vegetable oils, oil products and withstands cargoes with specific gravity up to 1.025 t/m³. No structural element faces the coated cargo tanks. The conversion project is prepared to build an environment-friendly, cost-effective, reliable and flexible unit. The ship is provided with a cargo pump room installation.


Services

TECHNICAL CONSULTANCY

  • Shipyard selection
  • Project planning & Scheduling
  • Equipment & Material determination
  • Procurement consultancy
  • Production control engineering
  • Ship take-over process management


CONTRACTING BUSINESS

  • Conversion to Double Hull
  • Outfitting units production & Assembly
  • Machiney systems assembly
  • Piping systems production & Assembly

Ship Information

OWNER

SHIPYARD

HULL NO

DESIGNER

CLASSIFICATION

CLASS ID

CLASS NOTATION



IMO NO

Güneş Gemicilik ve Tankercilik A.Ş. / Türkiye

Trogir Shipyard - Hırvatistan (Tekne inşa) & Deniz Endüstrisi A.Ş. - Türkiye (Dönüştürme)

35

Delta Marine

Bureau Veritas

04736A

BV HULL MACHINERY, OIL TANKER, UNRESTRICTED NAVIGATION, ESP AUT-UMS, COW, SBT, IGS, CLEAN SEA

8808525


Main Dimensions

Length (OA)

Length (BP)

Breadth (Moulded)

Depth (Moulded)

Draught (Design)

Draught(Scantling)

176,00 m

169,00 m

32,00 m

15,10 m

10,00 m

11,20 m

Tonnage & Capacities

DWT

Cargo Capacity

Crew

40111 ton

40792 m³

30

Speed & Propulsion Sys.

Des. Speed

Main Engine

Propulsion System

14.5 knots, 85 % MCR

MAN B&W 6S50MC-C, 1 x 7650 kW,111 rpm

1 x Fixed Pitch Propeller, 4 blades, 5950 mm, 111 rpm
